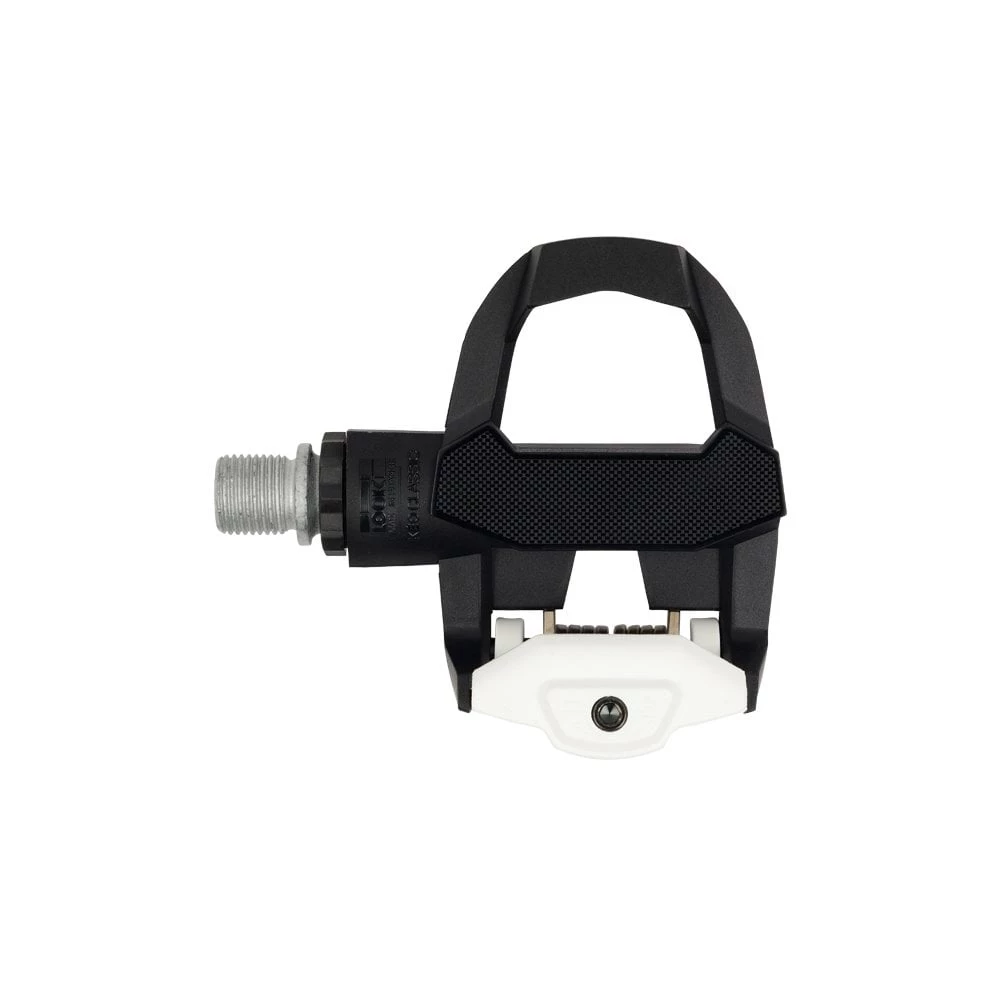

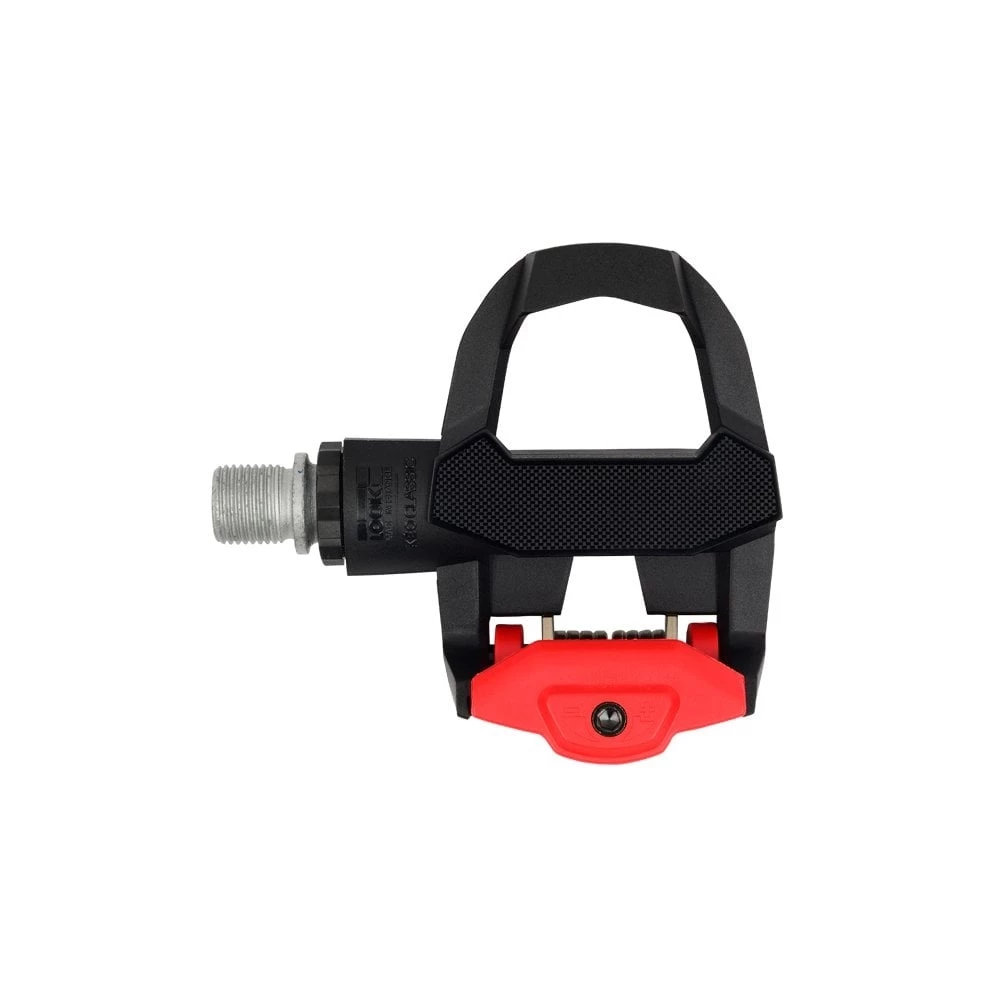

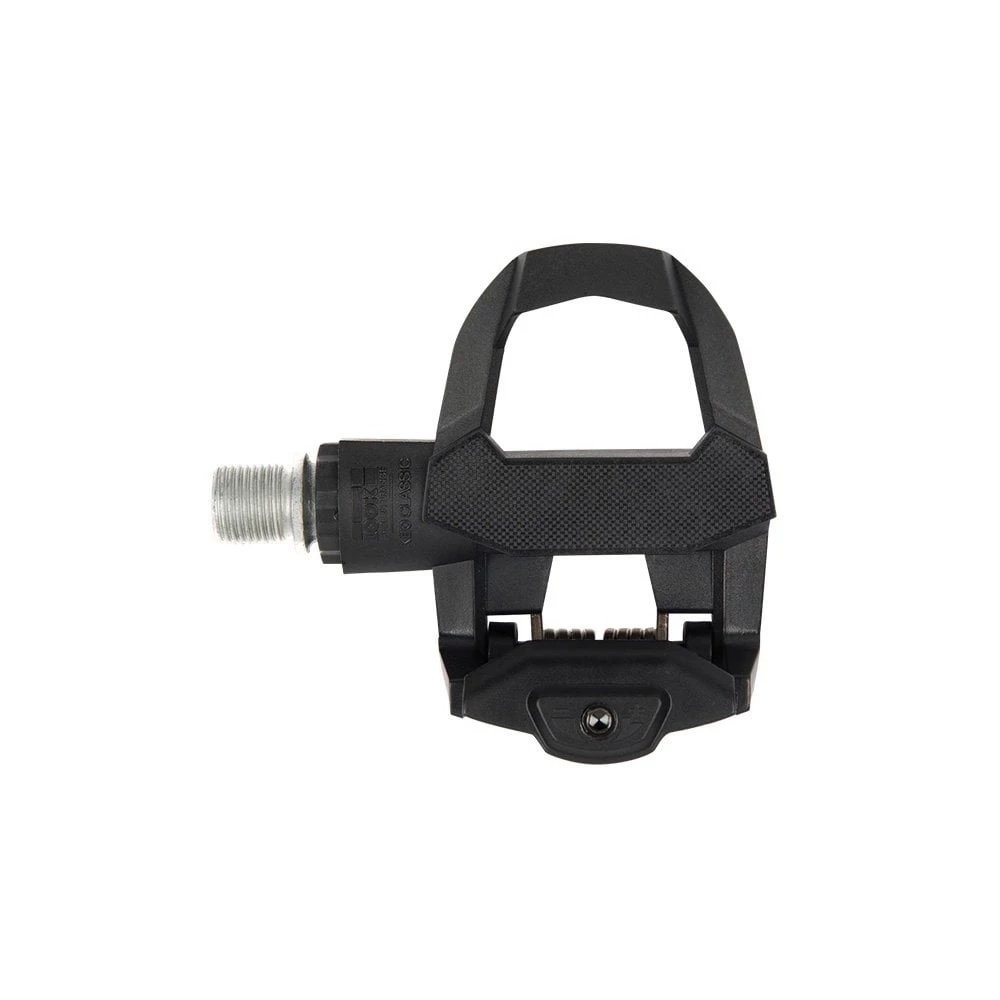

LOOK Keo Classic 3 Road Pedals

KéO CLASSIC 3

COMFORT AND STABILITY

Discover the fun and the benefits of riding with the Kéo Classic 3 clipless pedal.

Simple to use, it is impossible to adjustment the cleat entry/release tension too low for an easy clip out. Its large and wide contact surface provides excellent pedalling stability.

Technology:

CHROMOLY SPINDLE FOR MORE RELIABILITY

The Kéo Classic 3 spindle is made up of an oversized steel axle with miniature ball bearings (12 mm inside x 18 mm outside) and a needle bearing cartridge for improved wear resistance. A spacer is used to hold the needle bearing cartridge in place.

A new method of fitting the spindle into the pedal body also ensures the prolonged reliability of our pedals. LOOK spindles are only approved after a rotational test of 2 million cycles at 100tr/min with a load of 90kg on the centre of the pedal and an eccentric rotation (creating a shock on each rotation).

LOOK axles are only approved after a rotational test of 2 million cycles at 100 rpm with a load of 90 kg on the centre of the pedal and an eccentric rotation (which creates stress on each revolution). This is equivalent to a sprint by André GREIPEL of 1700 watts at 100 rpm for 333 hours! This test is much more demanding than the current standard, the ISO 4210.

Specification:

Usage: Beginner to advanced

Body: Composite

Axle: Chromoly

Threading: 9/16 X 20 mm

Bearings: 1 ball bearing, 1 needle bearing cartridge

Pedal Stack Height: 15.7mm

Distance Pedal Spindle / Crank Arm: 53mm

Contact Surface Area: 400mm²

Float: 8 to 12 adjustable spring

Cleats: Kéo Grip Cleats

Angular Movement: 0 °, 4.5 ° or 9 ° according to the cleat colour (Black, Grey, Red)

Pedal Weight:140g (348 gr per pair with cleats and screws)
