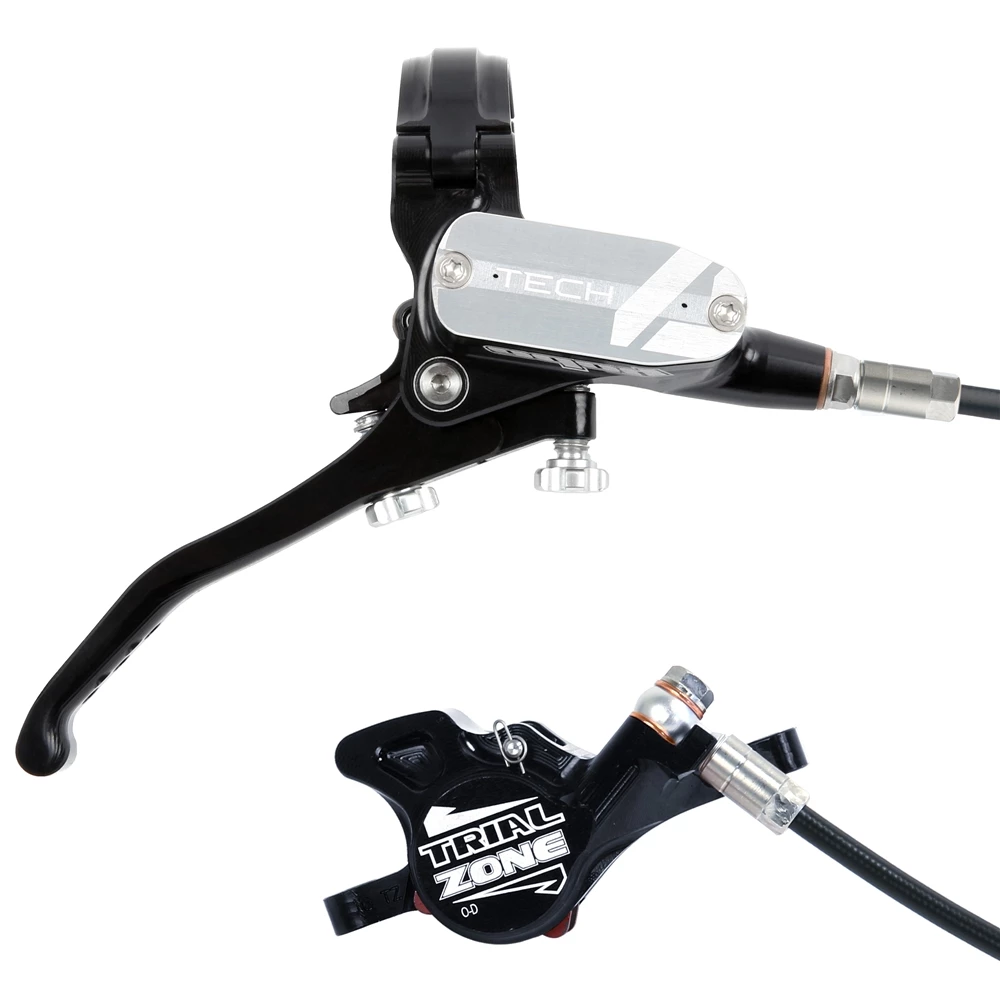

HOPE Tech 4 Trial Zone Hydraulic Disc Brake – Right-Hand/Front (No Rotor)

The all new Tech 4 Trial Zone builds on Hope’s 25+ years’ experience designing and manufacturing hydraulic brake systems. The Tech 4 uses all new internal sealing for reduced friction and the pivot spins on roller bearings, allowing the spring rate to be reduced. The lower spring rate in turn gives a lighter lever action, reducing rider fatigue and keeping Hope’s legendary feel and modulation.

Key Features

• Increased power versus Tech 3
• Lever shape updated to provide a more ergonomic shape orientated to provide the best mechanical advantage during braking.
• Hinged clamp reducing weight and ergonomics
• Shifter integration improved for more adjustability
• Tool free bite point and reach adjustments
• Two huge 25mm aluminium pistons offer great power and stiffness
• Rigid CNC’d one piece caliper
• Designed to work with Hope’s Trial Zone rotors for optimum performance

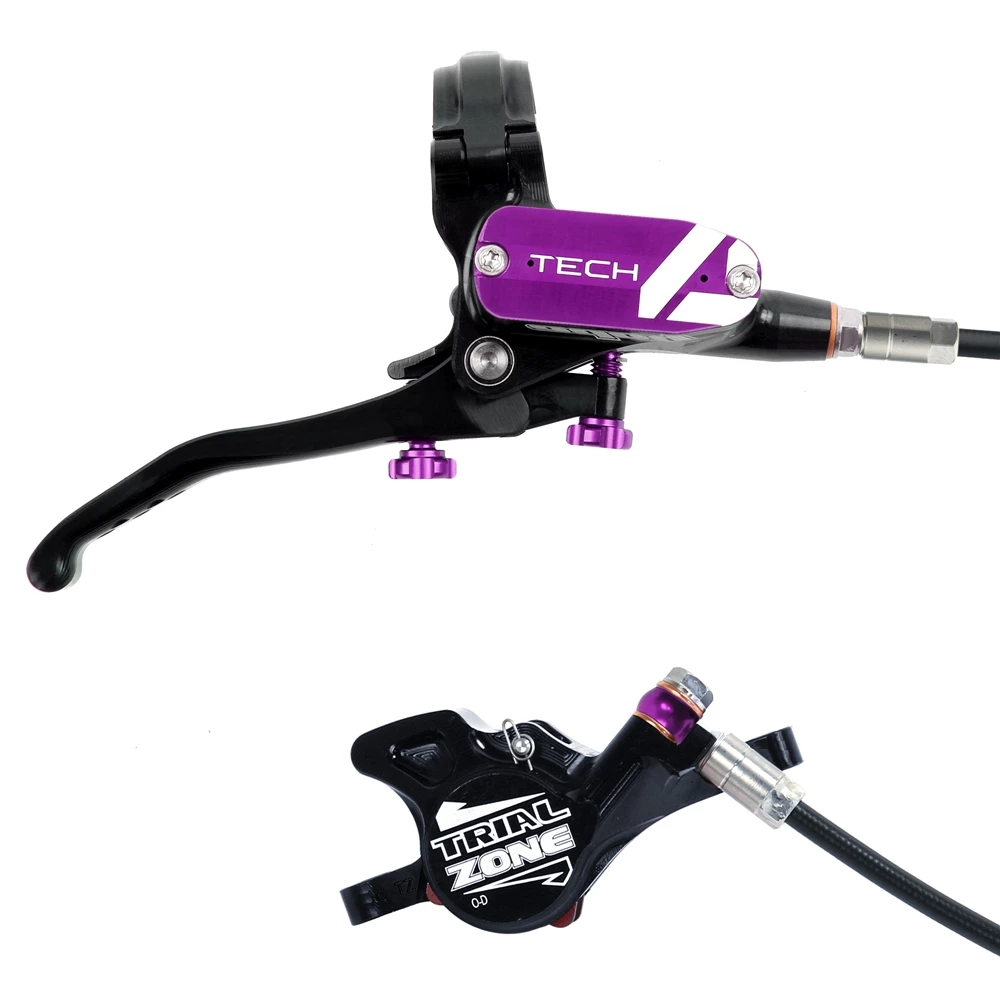

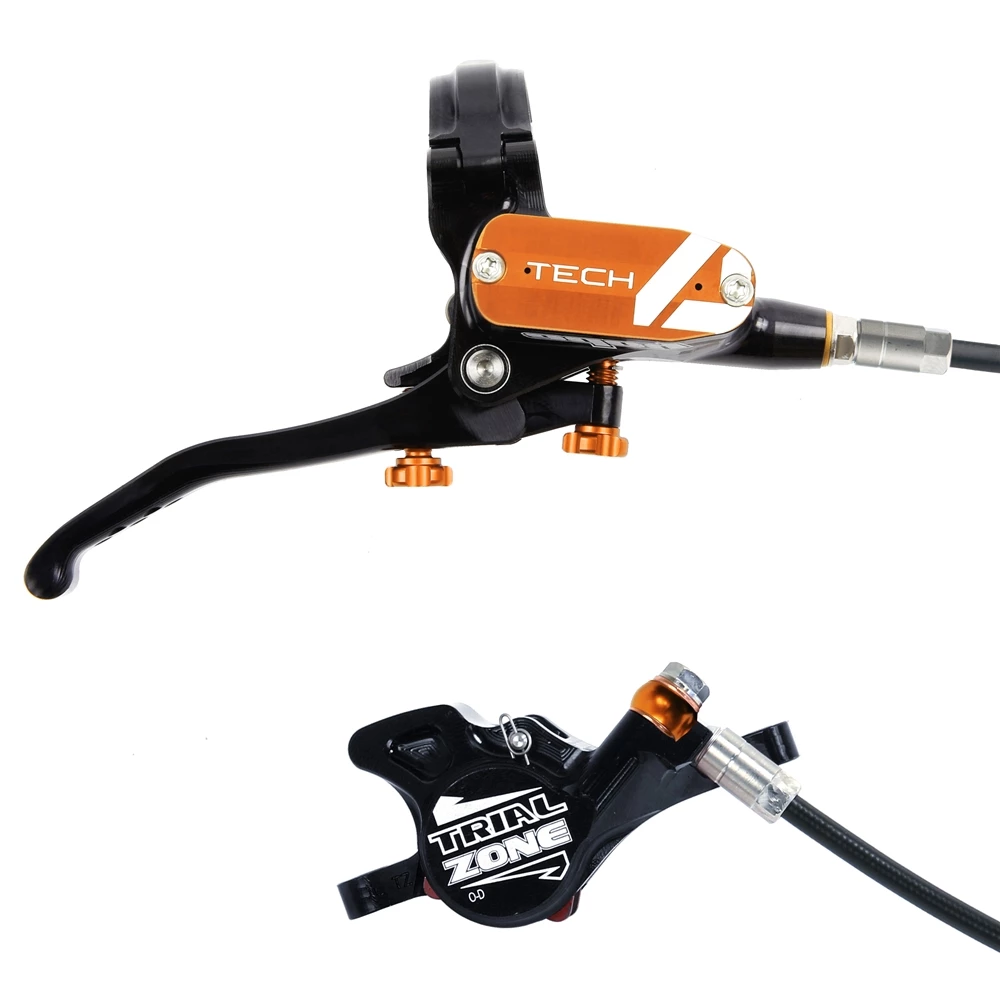

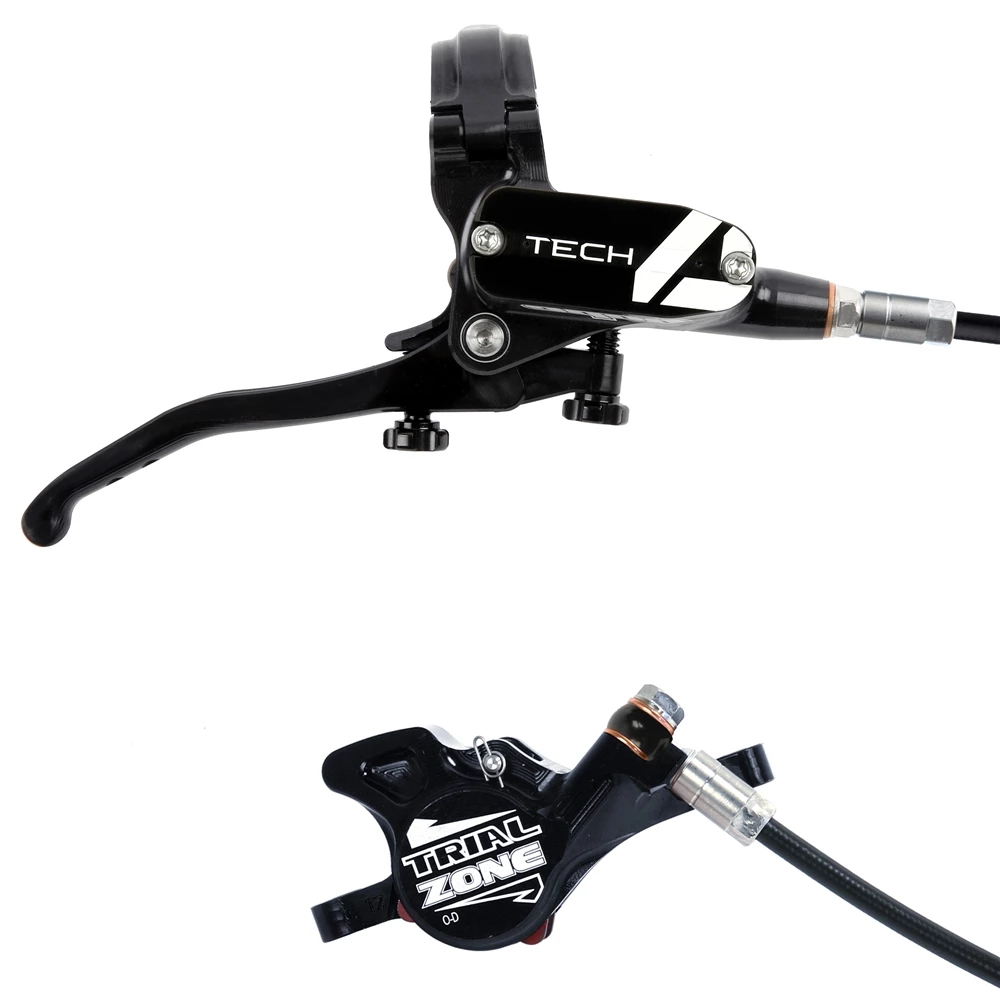

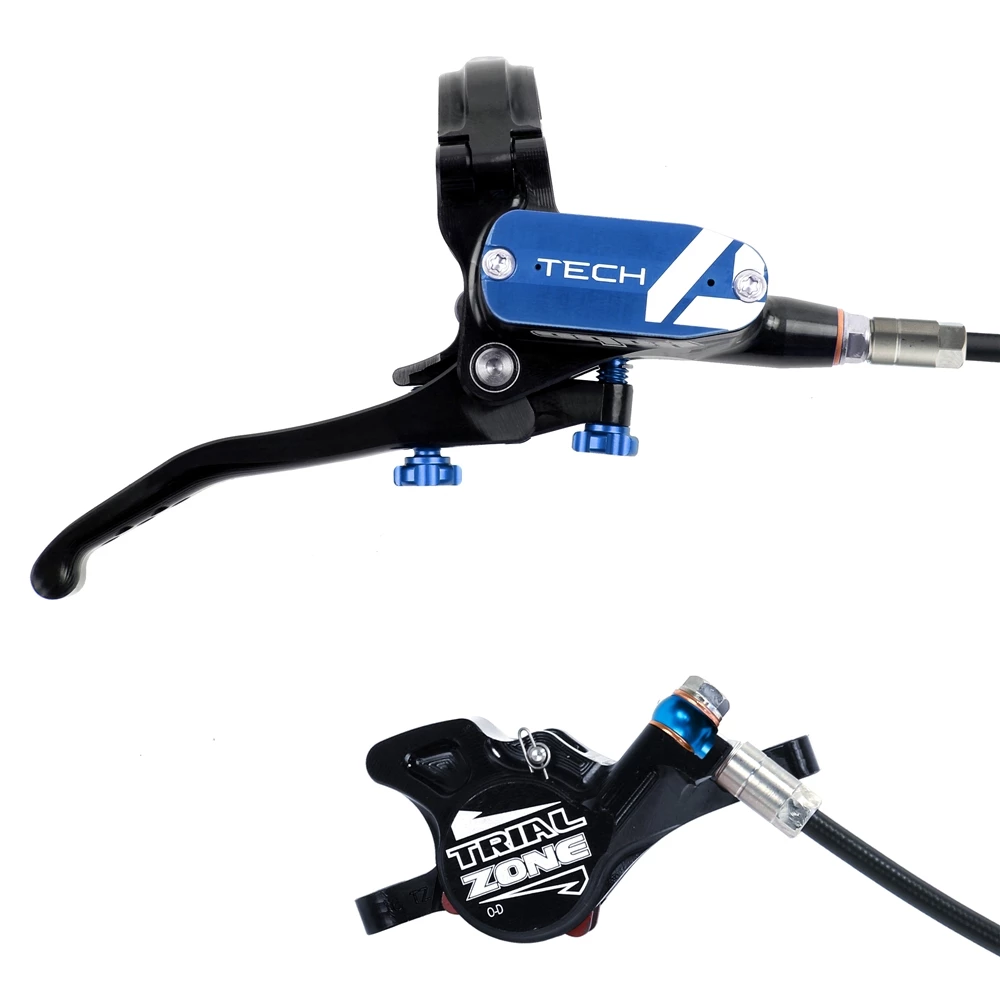

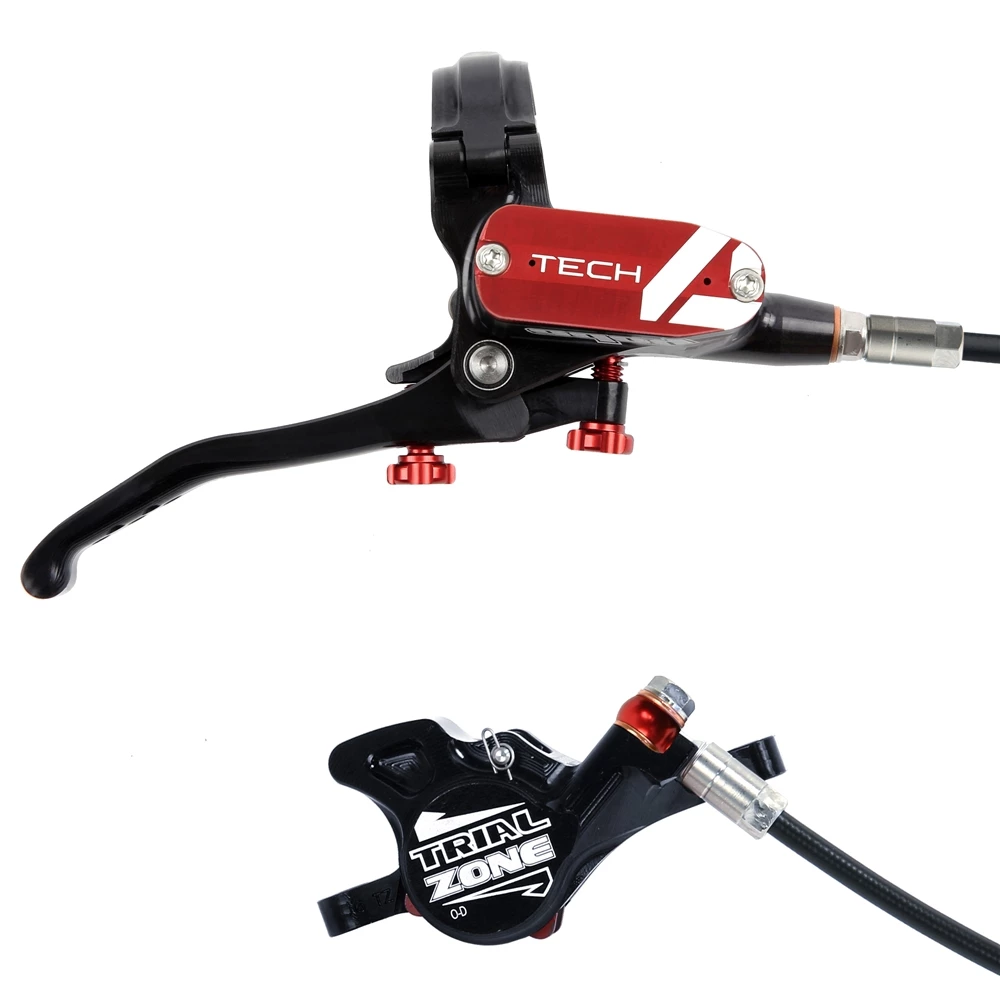

• Complete brake available in Black or Silver with colour accent options of; Black, silver, purple, red, blue, or orange.

Tech Specs

• 30% pressure increase compared with the Tech 3 brake
• Hinged clamp design to reduce weight and reservoir area increased to lower overall stack height.
• Shifter integration has been improved and now offers 30° of angle adjustment as well as neater packaging and compatibility with the latest shifters. Lateral adjustment on both sides of the master cylinder is also possible to give a wide range of lever position options.
• The Tech 4 retains the tool-free bite point and reach adjustments from the Tech 3
• All Tech 4 brakes are supplied with new racing compound pads.
• Two huge 25mm aluminium pistons offer great power and stiffness
