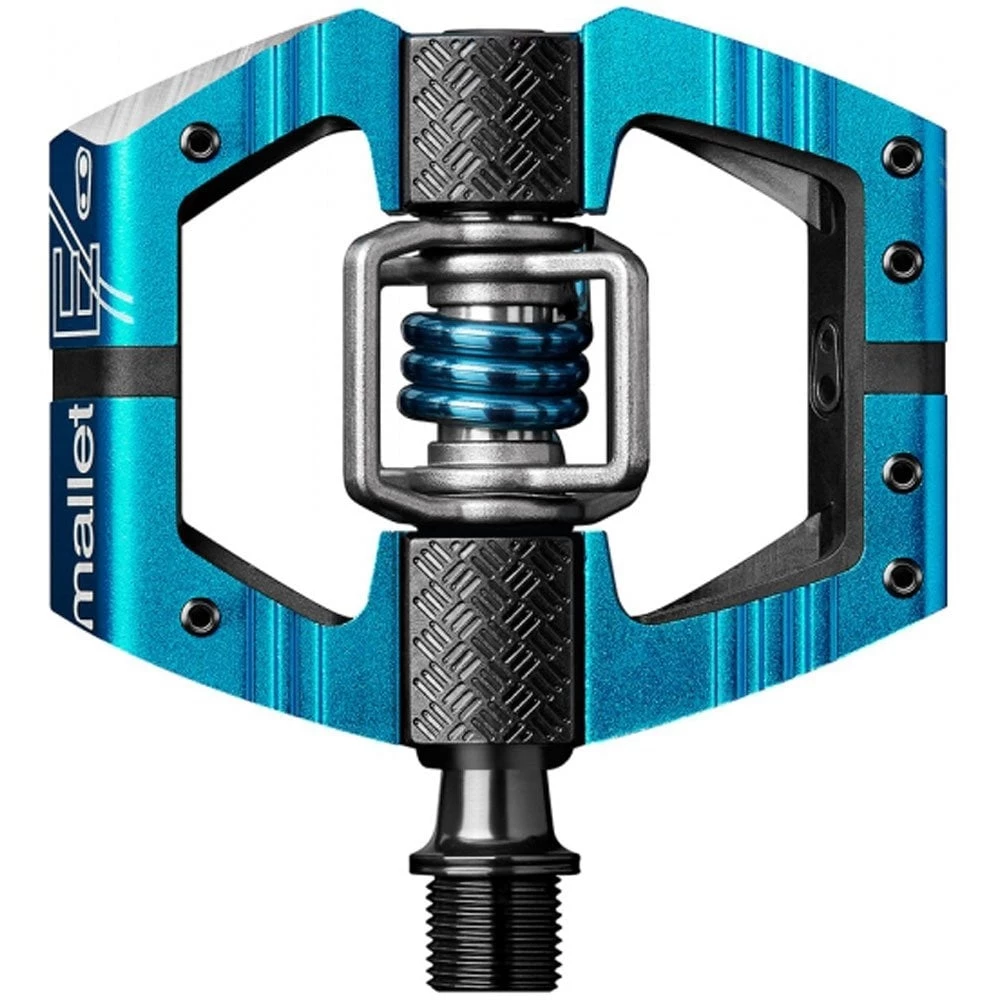

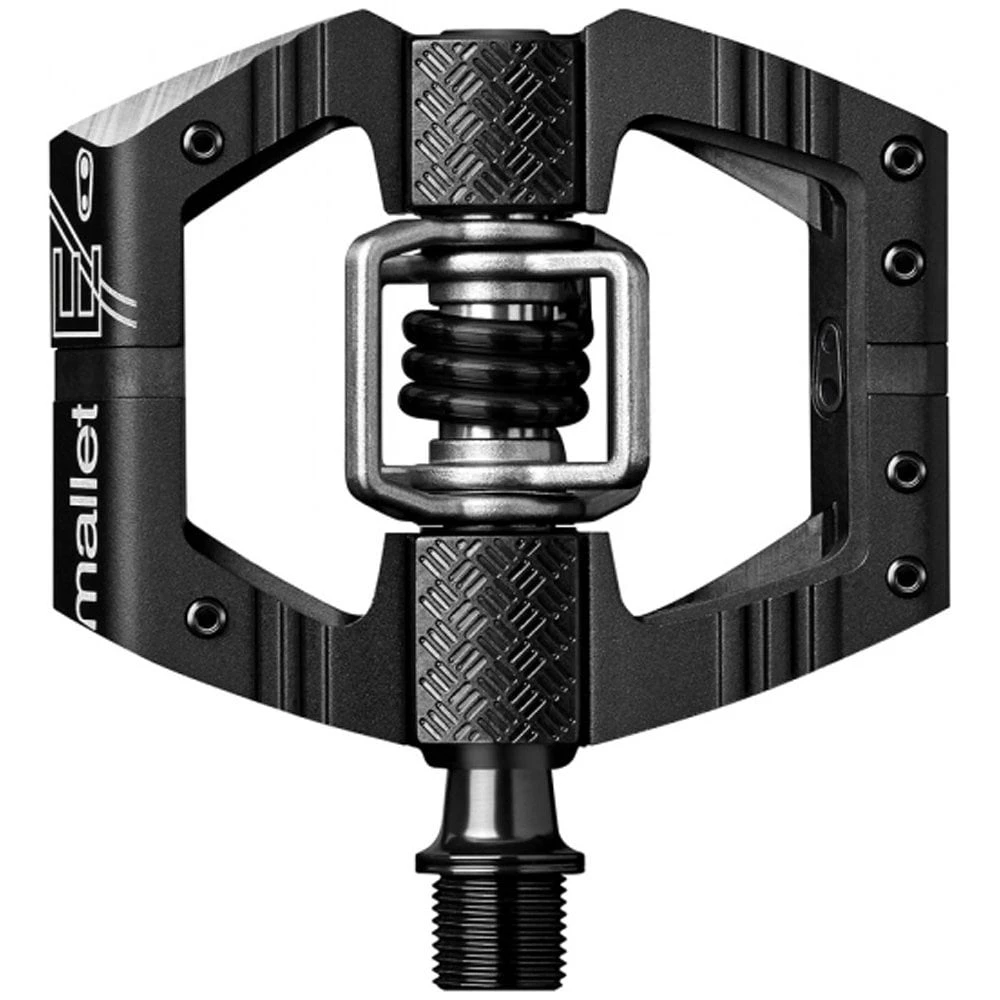

Crank Mallet E MTB Pedals

The ultimate pedal for enduro racing and riding.

The mallet E was developed with the help some well known enduro athletes.  12% smaller than the Mallet DH pedals but with many of its well loved features.

Available in black or blue colour options.

Concave pedal platform for secure foothold.  Like it’s DH equivalent you get that flat pedal feel whilst running clipless.

49g lighter and 12% smaller pedal body than the crankbrothers Mallet DH pedal with a 52mm Q-Factor compared to 57mm on the DH equivalent.

Ribbed body allows for better traction when unclipped

Chamfered edges for reduction in rock strikes

Excellent mud-shedding: the design is very open.

4-sided entry: clip in on all 4 sides of the pedal, by pushing forward or pulling backwards on the pedal.

Increased float: 6° of side-to-side rotational play.  The float of the pedal allows for the rider to shift positions on the bike, while keeping their feet clipped into the pedal.  This allows for improved rider control and bike handling.

Fit adjustment: crankbrothers premium cleats can be adjusted for either 15° or 20° release angle.  Zero-float cleats can be purchased separately (link to these).

Customise the fit between your shoe/pedal interface by using integrated traction pads.  The pedals come with the 1mm tread pads fitted and include set of 2mm pads in the box.

Outer enduro cartridge bearing is designed specifically for pedals.  Enduro use superior materials, grease and sealing on their bearings which are designed especially for use on a bike.

Inner igus LL-glide bearing has been exclusively formulated for crankbrothers.  It performs in even the most adverse conditions out on the trails.

Double seal system combines a double lip internal seal and a new external seal to keep water and debris from entering the pedal.

crankbrothers pedals are fully re-buildable for simple maintenance.   There is a consistency in parts across all pedal models, which allows for ease of servicing, this is easily done using the pedal refresh kit (CRB-16051).

Mallet E

• Weight (per pair): 419g
• Spindle: Forged scm 435 chromoly steel
• Body: 6061-T6 aluminium
• Wings: 17-4PH stainless
• Spring: 300 series stainless steel
• inner bearing: Igus LL-glide bearing
• outer bearing: Enduro cartridge bearing
• Pins: 12 pins per pedal
• Cleats: premium brass cleats included
• release angle: 15° or 20°
• Warranty: 5 years
